Product Description
A 3D-printed BBC engine based on the Pro Line 4,000 HP 585 Billet engine.
I designed it in Fusion 360 using photos of the real engine.
Engine block, large heads and Moroso oil pan are designed from the photo above.
Injection distribution blocks are included for the blower manifold and injector hat plus 'starter' holes are provided for injection lines.
Choose between two injection hats:
Tall Hat - .65" height (Tall hat shown in photos)
Medium Hat - .55" height
Choose Oil Pan Version

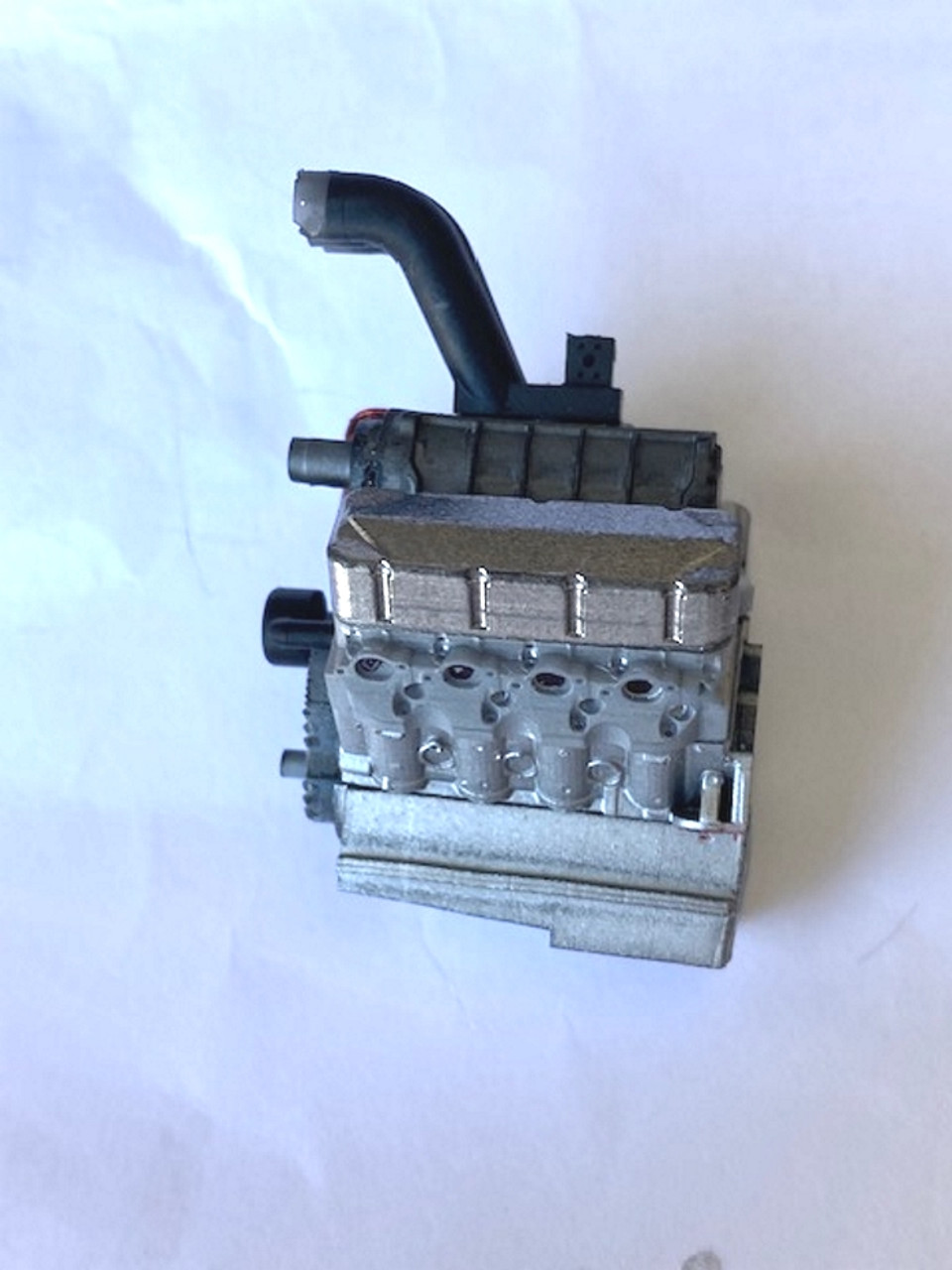

Deep Moroso oil pan. This version is shown in the photo above.
Low Profile version.
Choose Pro Mag
Single Pro Mag
Dual Pro Mags with Drive ($5 adder)
Features:
- Detailed Block
- Enlarged Heads
- Blower Manifold with distribution block and 'blow-out' plugs
- 1475 Blower
- Detailed MSD Pro Mag 44 magneto with MSD logo decal - Choose single mag or dual mags
- Tall valve covers
- External Oil Pump
- 3-Hole Scoop with distribution block and butterflys - Choice of size
- Front-Drive Magneto Timing Cover
- 1.5mm Stainless Steel Magneto Shaft
- Oil Pan - Choice
A Tunnel Ram, Dual Carb version engine is soon to be available.
Photos show assembled and painted version for visualization. Engine is as shown in the parts photo, printed in black resin.
Assembly required.
One BBC engine, 3D printed, 1/25 scale, by Ted's Modeling.
